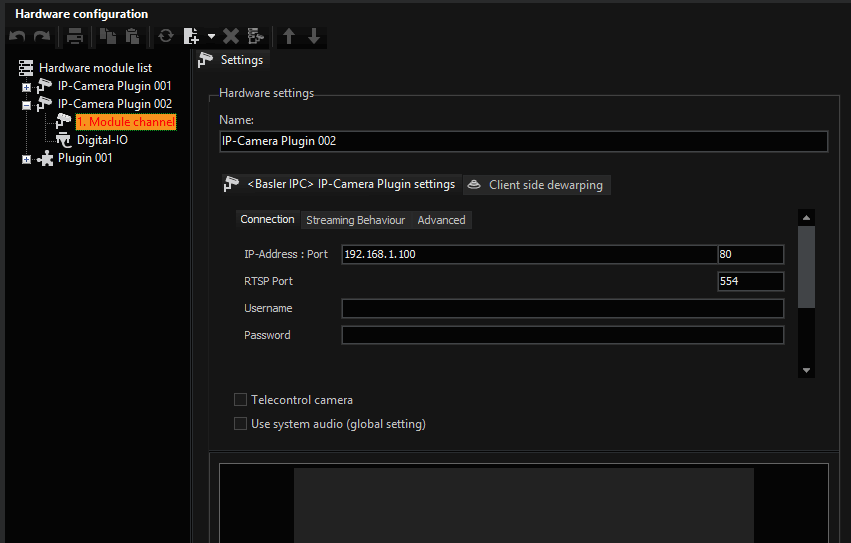

Configuration
There are the following configuration options:
|
Tab |
Option |
Description |
|---|---|---|
|
Connection
|
IP-Adress |
IP address or hostname of the camera (default: 192.168.1.100). |
|
Port |
HTTP port of the camera (default: 80). |
|
|
RTSP-Port |
RTSP port of the camera (default: 554). |
|
|
Username |
User name to connect as (default: empty). |
|
|
Password |
Password (default: empty). |
|
|
Stream Behaviour
|
Streaming |
Single (default) or dual streaming mode. |
|
Merging |
Different merging methods for single stream mode. |
|
|
Codec |
Codec for recording, live or single stream. Available values are: Motion JPEG and H.264. |
|
|
DLS Control
|
Disable DLS |
Disable DLS control. |
|
Disable resolution |
Disable resolution control. |
|
|
Disable quality |
Disable quality control. |
|
|
Disable FPS |
Disable frame rate control. |
|
|
Fixed values
|
Fixed resolution |
If provided - this resolution decimation will be used instead of automatically calculated. Examples: |
|
Fixed quality |
If provided - this quality level will be always used. Examples: |
|
|
Fixed FPS |
If provided - this frame rate decimation will be always used. Examples: |
Normally, you only change the connection settings and leave all other settings untouched.

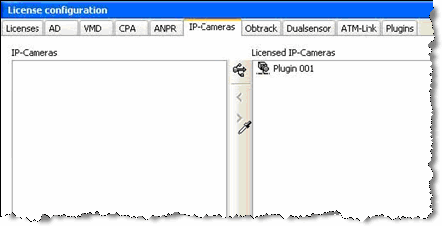

Do not forget to configure the appropriate licenses:
