Connection

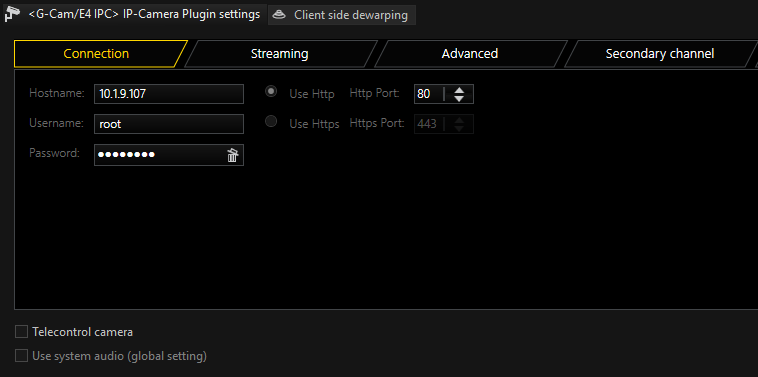

Under Hostname, enter the IP address of the camera.

Control commands for the camera and the querying of the motion detection and digital inputs are performed by default over port 80. Streaming of the video image is processed via RTSP and thus port 554.

It is important that the correct password is entered. Default at G-Cam/E5 is username=root and password=admin.

If you use a speed dome camera, please also enable Telecontrol Camera.

After the setup has been transferred to the G-Core server and a media channel has been added, you should be able to see images in the setup. If not, check the IP address, and in particular the user name and password.

Use basic access authentication at communication startup: This option can be activated to achieve a faster connection setup. A disadvantage of this option is that the password and user name are transmitted unencrypted!

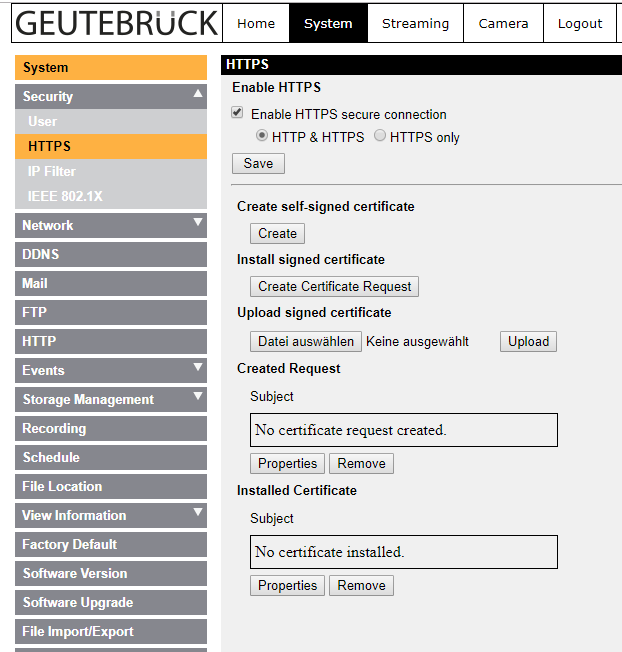

If you like to use HTTPS communication, you have to set up the camera to use HTTPS. For this you have to install or create a certificate on the camera and enable the HTTPS secure connection.
