Settings in the Camera Web Interface

Streaming Transfer

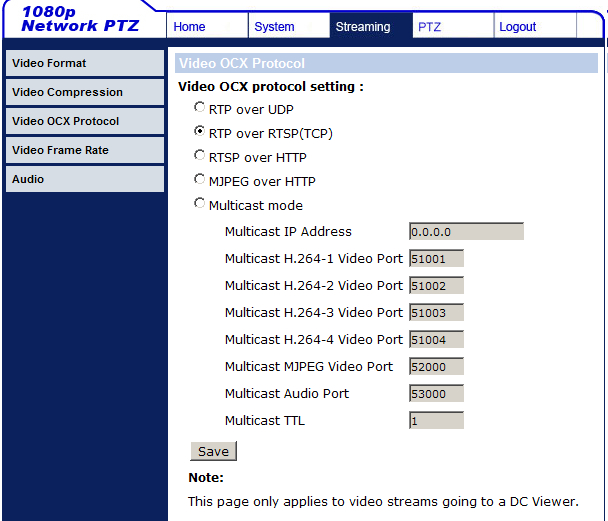

If the streaming transfer is changed in the plugin, this fact must also be changed in the web interface of the camera. To do so, in the camera web interface go to Streaming and then to Video OCX Protocol. You can now select the streaming transfer to be used by the camera.

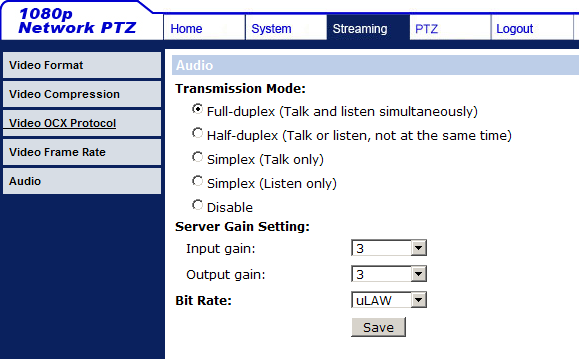

Audio

To use audio, you must first activate it in the camera web interface. To do so, go to Audio under Streaming. You can specify the audio configurations here.

Motion Detection

To use the camera-internal motion detection, it is necessary to activate it beforehand in the web interface of the camera. To do so, in the System tab, find the Motion Detection menu item.

If the motion detection has been activated, it is possible to specify new MD windows using the Add button.

Under Sensitivity Level the trigger threshold can be specified.

If a motion is detected by the internal motion detection, the plugin sends a "sensor video alarm" to the server.

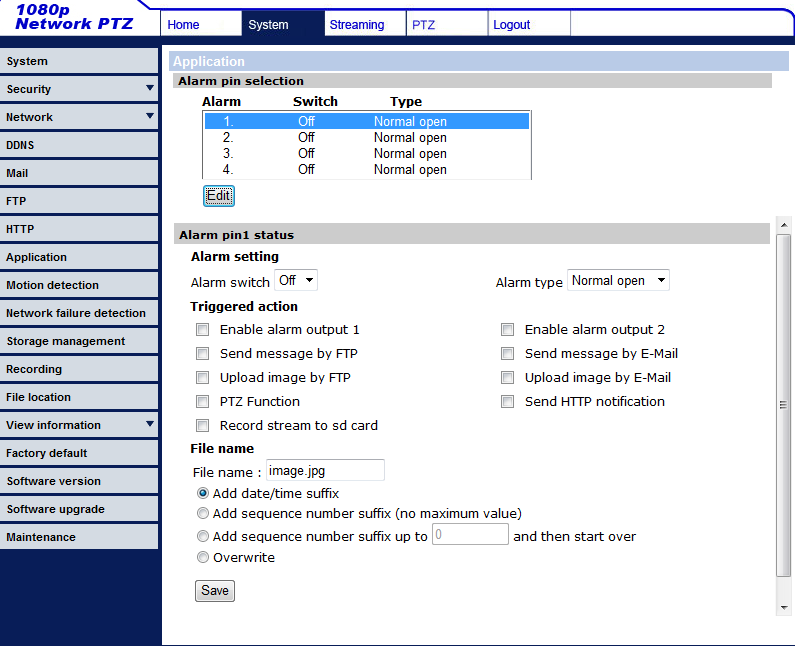

Input Contacts

The plugin supports up to 4 input contacts, which should be configured accordingly in the setup of the camera:

The corresponding contacts should be added in G-Set.
