Connection

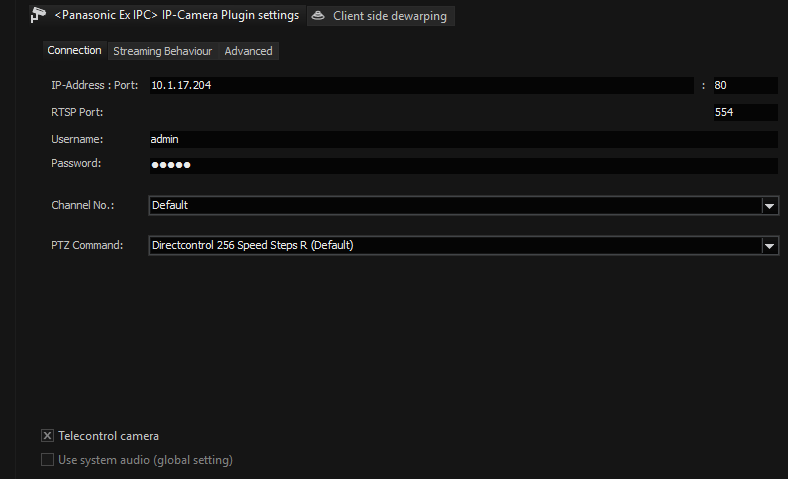

In the Connection tab enter the IP address of the camera and enter a Username and Password.

Control commands for the camera and the querying of the motion detection and digital inputs are performed by default over port 80. Streaming of the video image is processed via RTSP and thus port 554.

It is important that the correct password is entered. The default username and password for Panasonic products is admin (username) and 12345 (password).

If you use a speed dome camera, a camera with the functions solid PTZ, digital PTZ or ViewAreas, please also enable Telecontrol camera.

After the setup has been transferred to G-Core server and a media channel has been added, you should be able to see images in the setup. If not, check the IP address, and in particular the user name and password.
