VCA Bridge

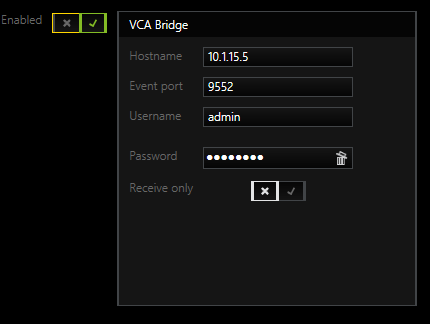

Enable VCA Bridge

Name	Description
Enabled	Enable this plugin to use a VCA Bridge.
Hostname	Host or IP of the VCA Bridge.
Event port	TCP on which this plugin instance should receive events. Has to be unique for each plugin instance.
Username / Password	Login data for VCA Bridge. Default credentials: Username: admin Password: admin
Receive only	If activated, plugin does not configure anything in the VCA Bridge. Inputs and outputs have to be configured manually.

The video analytics itself has to be configured in the VCA Bridge via its Web UI.

It is advisable to use an up to date version of Chrome.

VCA Bridge can currently be used with E2/ E3/ E4 plugins and with the Axis plugin.

Configuration

1. Configure the plugin as usual.

2. In the Bridge tab set the plugin to receive only.

3. Enter the port.

4. In the bridge, configure a camera.

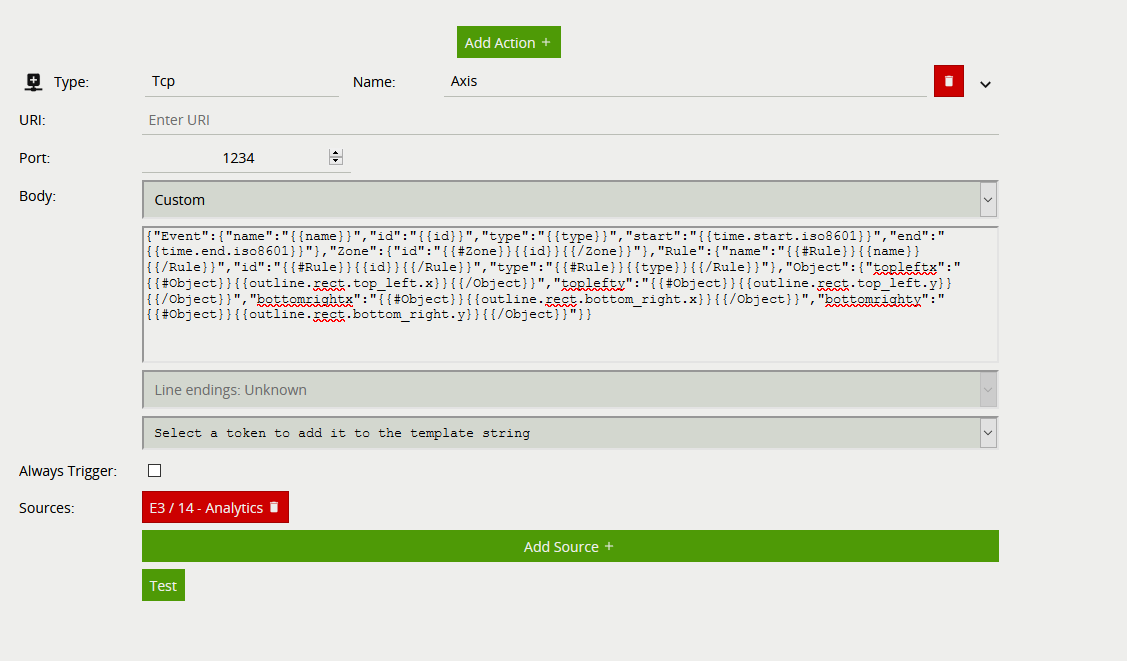

5. In the bridge, configure an Action. Enter the following data:

   Field	Data to be entered
   Name	Freely selectable.
   URI	The IP address of the G-Core server.
   Port	The same port as in step 3 above.
   Body	„Custom“
   Sources	The channel from step 4.



Actions of the VCA Bridge

The assignment of the actions between the VCA Bridge and G-Core is as follows:

VCA Bridge	G-Core
Appear	„VCA Alarm Enter Field“ EnterField
Direction	“VCA Alarm Wrong direction” VCAWrongDirection
Disappear	“VCA Alarm Leave Field” LeaveField
Dwell	„VCA Alarm Enter Field“ EnterField
Enter	“VCA Alarm Leave Field” LeaveField
Leave	“VCA Alarm Leave Field” LeaveField
Stopped	“VCA Stopped vehicle” VCAStoppedVehicle
Count	“G-CAM/E2 VCA Counter Changed” E2VCACounterChanged
