Molynx Protocol

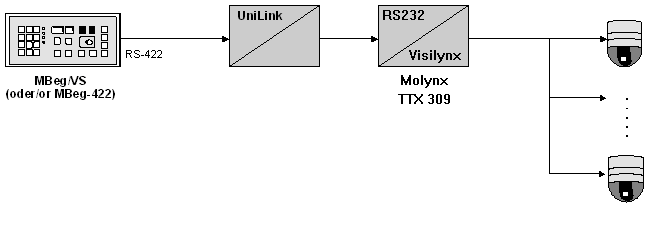

The Molynx protocol can be used to control the Molynx TTX 309 telemetry transmitter. The TTX 309 telemetry transmitter is connected to the UNILINK converter via the COM2 serial port. On the output side the TTX 309 then controls dome cameras and pan/tilt heads that are compatible with the "Visilynx Data" protocol (Molynx internal).

For the connection between UNILINK and Molynx TTX 309, a zero-model cable is used.

The protocol supports 100 speeds for panning and tilting, which are converted to the 256 levels possible in the KDEC300.

Number of fixed positions: 16 incl. home position (home position is fixed position 1)

Available camera numbers: 1...255 possible

Meaning of variables:
• kkk = Number of the dome camera to use, when appropriate, with leading zeros.
• pp = Fixed position of the selected dome camera, possibly with leading zeros.
• vvv = Additional variable speed parameters.

Molynx function

KDec command

MBeg

MBeg/VS

Pan right

SNkkkS-

With buttons (stop = release)

With the joystick

Pan left

SNkkkS+

Tilt downwards

SNkkkN-

Tilt upwards

SNkkkN+

Pan and tilt at high speed

SNkkk++

Hold button

Automatically via joystick

Pan and tilt at normal speed

SNkkk--

Release button

Automatically via joystick

Focus near

SNkkkF-

With the button

With Focus rocker switch

Focus far

SNkkkF+

With the button

Focus stop

SNkkkF0

Release /

Release focus

Zoom wide

SNkkkZ-

With the button

With Zoom rocker switch

Zoom tele

SNkkkZ+

With the button

Zoom stop

SNkkkZ0

Release /

Release zoom

Open iris. The dome is then in manual iris mode

SNkkkB-

Hold button (stop = release)

Close iris. The dome is then in manual iris mode

SNkkkB+

Hold button (stop = release)

Save fixed position or home position

PPkkk.pp

Program fixed position (1 - 16, home position = 1)

Move to a fixed position

SNkkk.pp

Move to fixed position (1-16).

Move to home position

SNkkk.Gp

Press button

Wiper on/off

SNkkkW1SNkkkW0

Press button

Wash on/off

SNkkkP1SNkkkP0

Press button

Lighting on

SNkkkL1

Lighting off

SNkkkL0

"Lens Slow" mode on/off

SNkkkX1SNkkkX0

X auxiliary function

Automatic iris on/off

SNkkkY1SnkkkY0

X auxiliary function

Camera on

SNkkkK1

Camera off

SNkkkK0
