User Interface

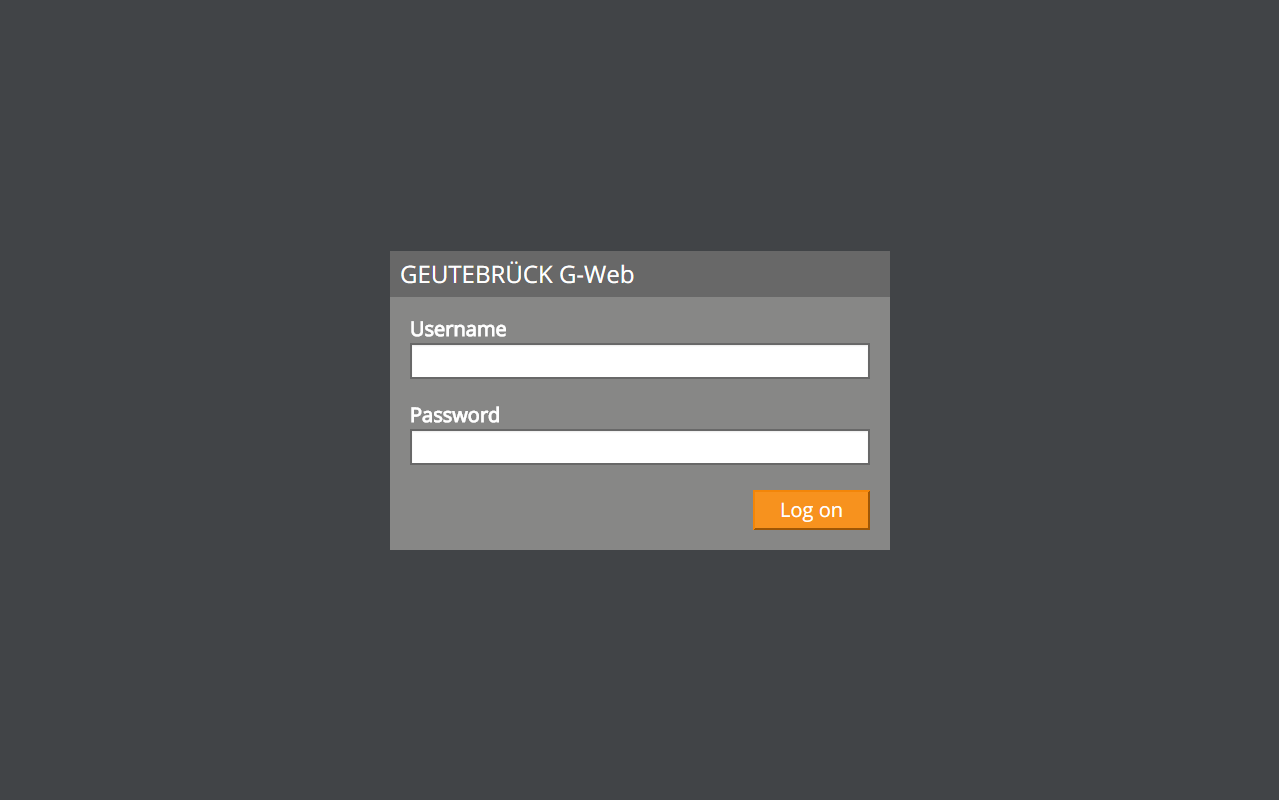

After entering the IP address in the address bar, the login screen appears (here on a tablet), in which a valid username and password must be entered to access the G-Core server.

If any of the information is not correct or is invalid, an error message is displayed. An error code is issued:

Code	Error	Possible solution
0	Everything OK
100	Connection error	Factors that prevent connecting to all G-Core servers configured as destination servers. (This error is only displayed if no connection could be made to any G-Core server.) Possible factors/causes: Network connection G-Core server service not started Port 13003 is not opened in the firewalls (incoming connection to "G-Core Server" page, outgoing to machine with G-Web server) User not created with the help of G-Set to the destination "G-Core servers" Users not assigned web rights. An account other than sysadmin should be used. In G-Set the user to be used must be assigned the user right web user (previously GSCWeb user). In addition, the default rights "Login alone" and "Read setup" are required
302	Wrong username or password	Check entry. G-Web user must be added in G-Set > User.
307	Connection limit reached	The maximum number of Web users has been reached for this G-Scope.
600	Control channel of the G-Core web server not opened

For all other errors, only the error code is issued!

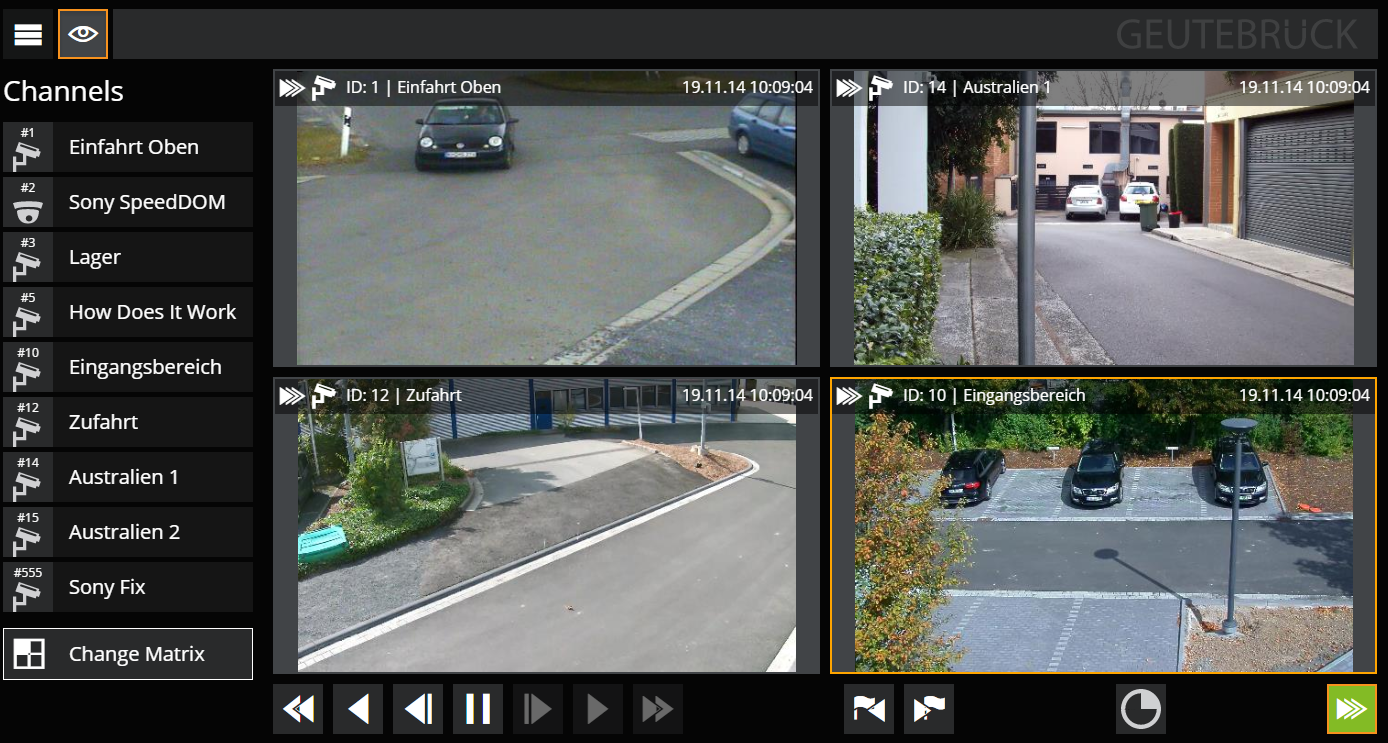

Upon valid authentication, the browser displays the current viewer matrix and the list of media channels. In the following figure, four channels on the 2x2 matrix are already switched on:

The interface for desktop and tablet is divided into four areas:

Area	Description
	Menu bar with icons for the channel list and the settings
	Channel list
	Viewer matrix
	Control bar

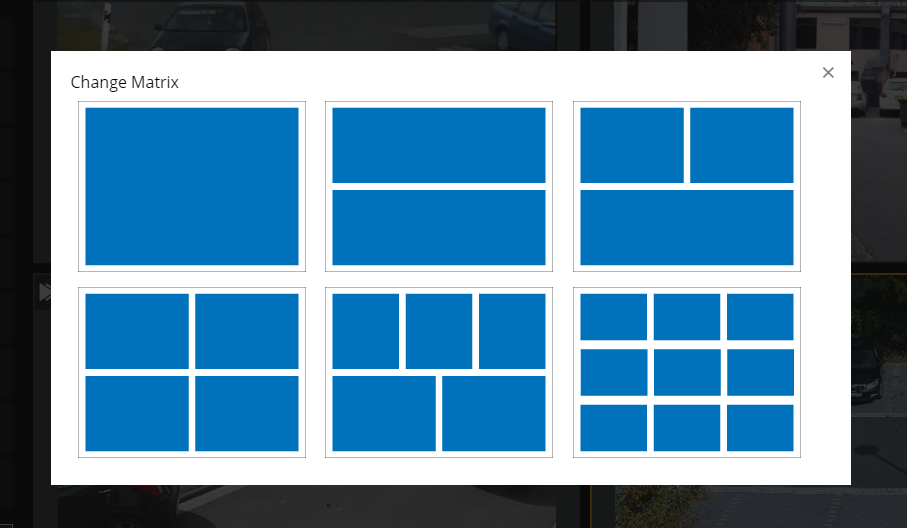

The viewer matrix can be changed using the Change Matrix button . There are six different templates to choose from:

Clicking on a different template selects that template.

Activating images onto the viewer is performed by clicking or by dragging the media channel with the left button onto a viewer.

The control bar shows the icons familiar from G-View:

Icon	Description
	Faster database rewind
	Rewind
	Rewind picture-by-picture
	Stop
	Fast-forward picture-by-picture
	Fast forward
	Database fast forward
	Previous event
	Next event
	Timepicker
	Live streaming

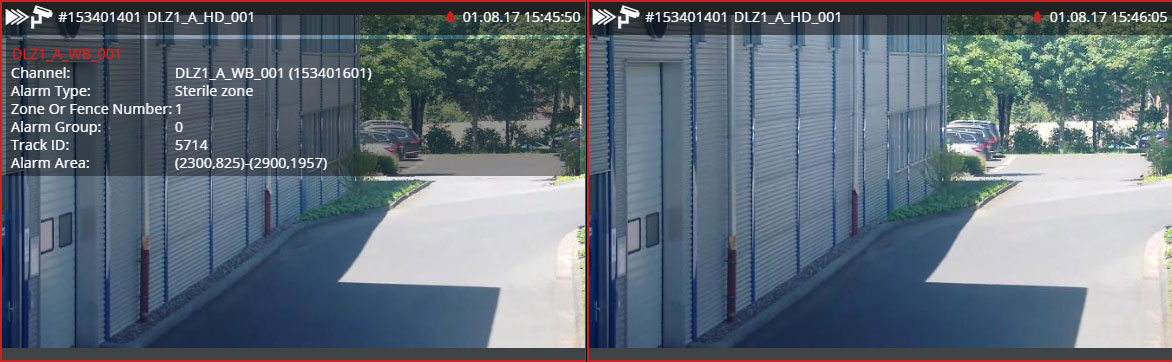

The button can be used to switch the display of meta data in the viewers on or off.
