Source Privacy Masking (SPM)

This type of masking cannot be used with network cameras.

The interface for Source privacy masking (SPM) is less complex. This also applies for operation:

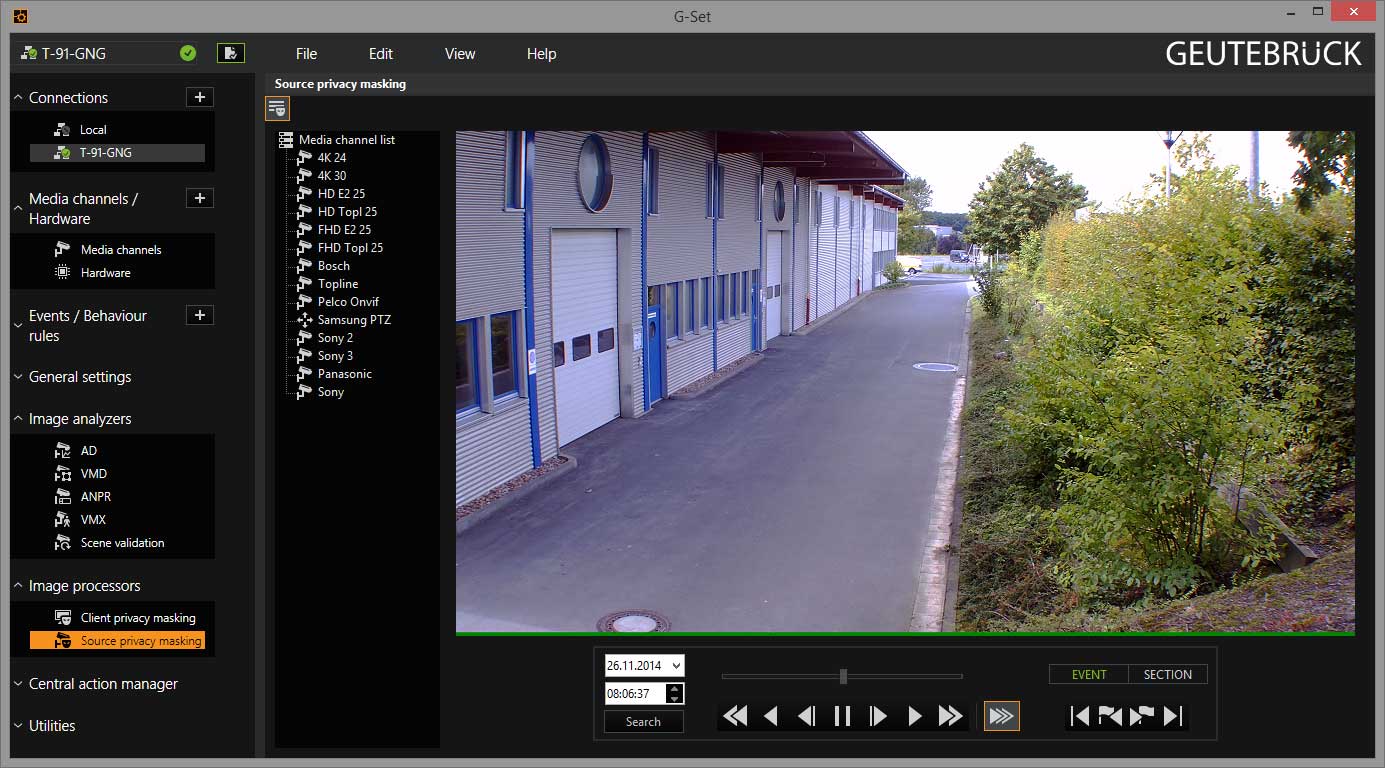

When the user rights were configured (Image Processors), the areas of the image can be masked. Drag the desired media channel onto the viewer.

After activating static privacy marking by clicking on the icon, you can use the left mouse button to draw the zones in the viewer. These zones are masked in the image permanently. More information on drawing zones can be found under Drawing Zones.

A drawn zone can be deleted by right clicking and selecting Delete in the pop-up menu. It is also possible to duplicate and copy zones using this method.

Once SPM masking has been applied for recorded images, it can no longer be undone. These settings must therefore be chosen very carefully.
