Fisheye

Fisheye de-warping has to be activated and configured in G-Set. See here for more information.

If fisheye de-warping has been configured in G-Set for an IP camera, the view can be switched in G-View via the context menu of the viewer. Open the context menu by right-clicking on the viewer, select Fisheye and then one of the following views:

View	Description	Example

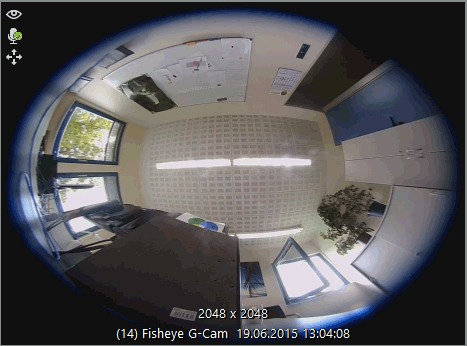

Board view	De-warping of the image does not take place (the standard view of the fisheye image).

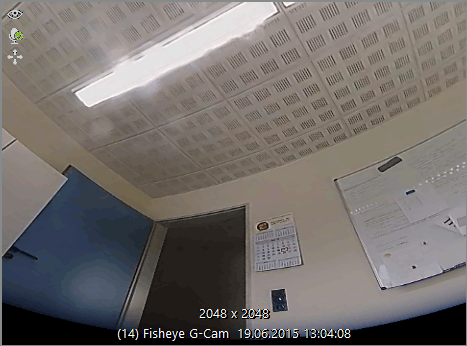

PTZ view	The fisheye image is de-warped and displayed in a viewer. PTZ view can be controlled using the PTZ joystick (also via an MBeg).

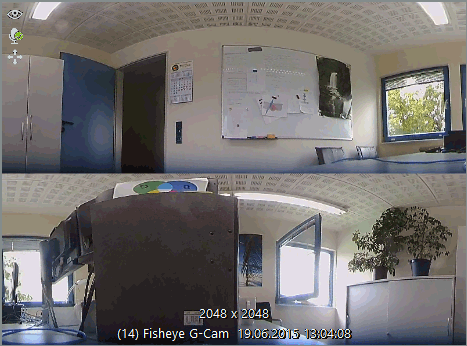

Double view	The fisheye image is de-warped and displayed on two superposed viewers. Double view can be controlled using the PTZ joystick (also via an MBeg).

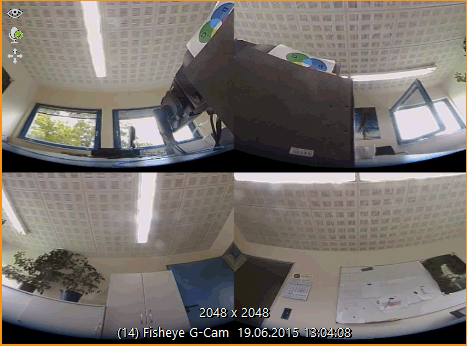

Quad view	The fisheye image is de-warped and displayed on four viewers.

If the installation position Wall is set in G-Set, the following views are available instead of Double view and Quad view:

View	Description	Example

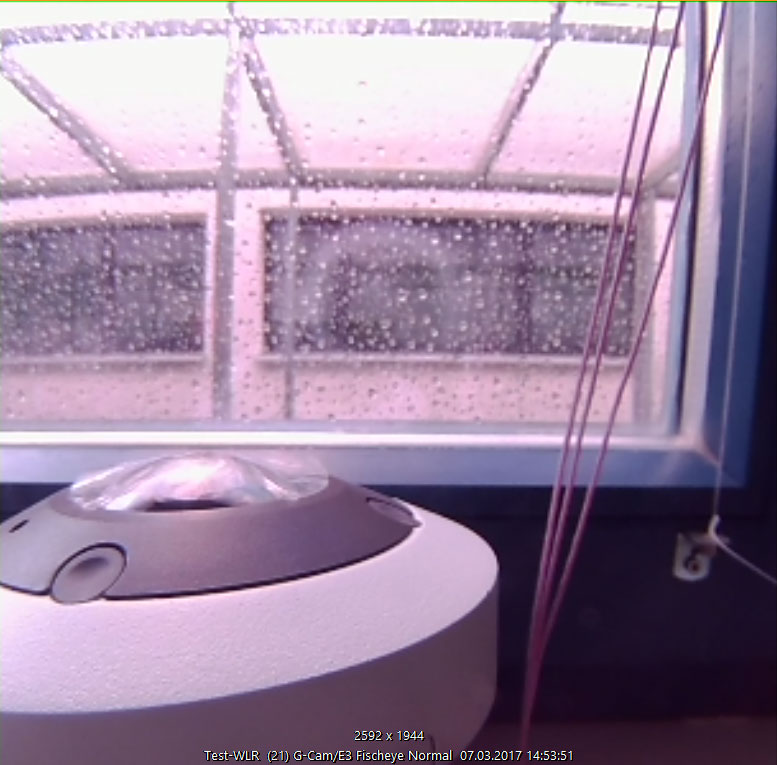

Panorama view	The fisheye image is de-warped and shown as a panorama.
Triple view	The fisheye image is de-warped and split into three viewers.
