Multimonitor

Multimonitor permits additional windows next to the main G-View window. Any of the types of window available under Windows can be used. The full-screen view simulates an analog monitor.

Toolbar

In the Multimonitor menu includes the following toolbar buttons:

Icon	Description
	Save settings
	Copy selected window
	Print
	Add a new window
	Delete selected window

Create Multimonitor

Click with the right mouse button in the empty Multimonitor list, and then on Add or directly use the toolbar button to create a new window.

The use of up to four monitors has been successfully tested. If you use more than four monitors, be sure to check for proper operation.

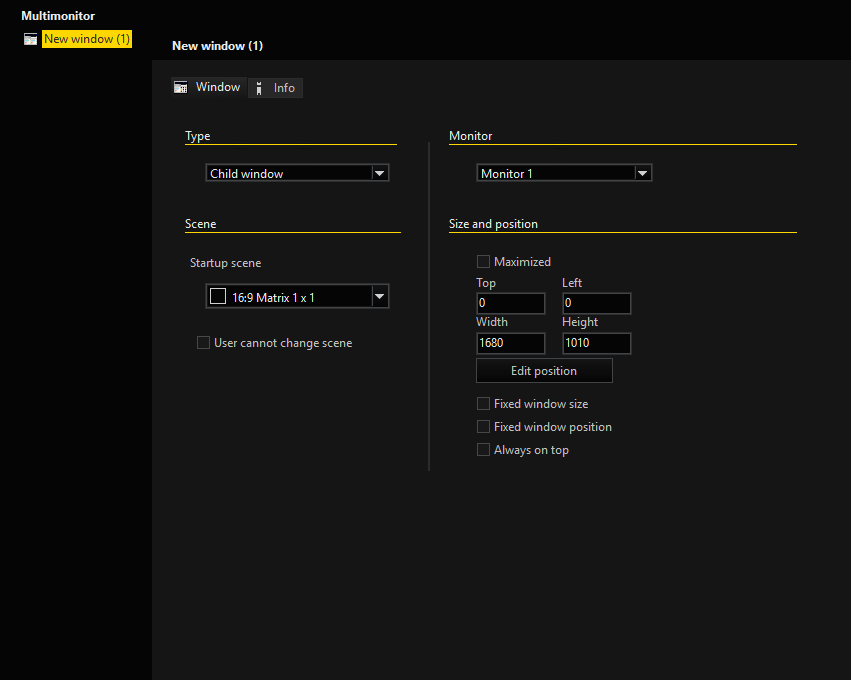

Configuration

Mark the window in the multimonitor list that should be configured and the following setting menu appears:

Type

Under Type you can select the type of the selected window. Choose between a Full screen or a Child window.

Leave a full scene window using the windows logo key on the keyboard.

Scene

In the Scenes part a Startup Scene for the window can be chosen. Additionally it can be defined if the user is allowed to change the scene independently. For that set a check mark at User cannot change scene.

Monitor

Under Monitor a connected Monitor on which the window will open can be configured.

Size and Position

If the type of the selected window is a child window you are able to set the size and position of the child window with these settings:

Setting	Description
Maximized	Maximizes the multimonitor window
Top / Left	Specifies the position of the window, in pixels, starting at top, left (0,0).
Width / Height	Specifies the size of the window, in pixels, as the width and height.
Fixed window size	The window size is fixed. It cannot be changed by the user.
Fixed window position	The window position is fixed. It cannot be moved by the user.
Always on top	Opens the window always on top

Click Edit position to get a preview of your taken size and position settings.

Activate / Deactivate

Multimonitors can be activated or deactivated per profile thru Options profile -> Multimonitor in the Profile manager. To activate a window for a profile mark a profile and select a window by placing a tick. Otherwise remove the tick.

Leave a full scene window using the windows logo key on the keyboard.

When a multimonitor window is active, you can divide it in a different way. Click with the right mouse button on, for instance, the 2x2 view on the toolbar, and then on the name of the multimonitor. The multimonitor window will change to the new appearance.
