GIS Maps

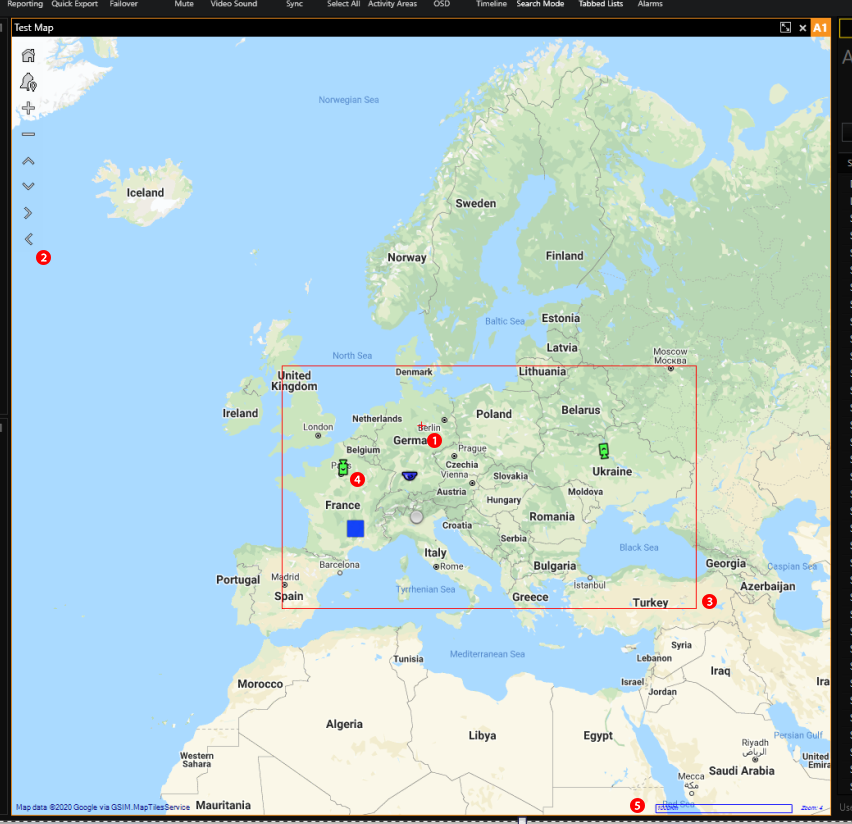

On the GIS Map Control, the operator can see the following information:

• Current map view center (small red cross marker)
• Map Control Panel
• Allowed map area (if any)
• Map objects and their current states
• Name of the map provider, scale and current zoom level

The Map Control Panel contains the following buttons:

Buttons	Explanation
Home	Centers map according to the map's starting point and applies the default zoom level.
Map Related Alarms	Shows the Map Related Alarms Control.
/ Zoom in/Zoom out	Increases/Decreases the current zoom level of the map. The current map zoom cannot be outside [Min Zoom scale, Max Zoom Scale] range.
/ / / Move up/Down/Right/Left	Moves the current map view. If Allowed Area is set, the operator cannot move outside the Allowed Area rectangle.

Navigation on the GIS Map:

• Move the current map view by holding the left mouse button and moving the mouse. Alternatively, you can use the Move Up/ Down/Right/Left buttons on the Map Control Panel.
• To zoom in/zoom out the current map view, scroll the mouse wheel. The same can be done with the Zoom In/ Out buttons on the Map Control Panel.
