Site List

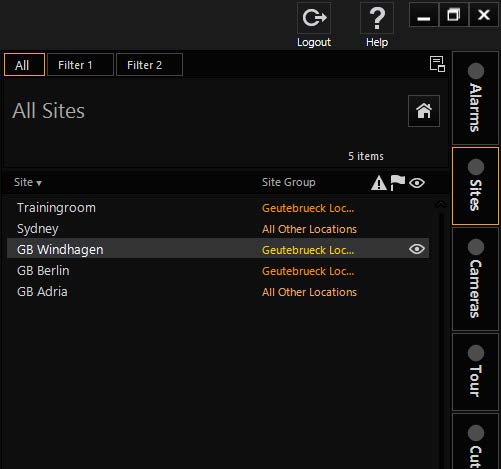

The Site List gives you quick access to available sites. Each row in the list represents one site and displays the site name, site group and a series of state icons to indicate sites with active video connections as well as possible connection problems.
Filter and Search
Site filters are configured exactly as per Filtering. The following points are highlighted.
A site may be easily selected in the Site List by starting to type the site’s name while the list has input focus. See Main Interface for more on incremental searches in Lists.
Buttons
|
Button |
Description |
|---|---|
|
|
Pressing this button allows you to dock a copy of the site list in a viewer. |
|
|
Pressing this button is a short cut to display the installation's home site map. |
Site Status
The third column in the list shows the current activity and status of each site which include sites with open video connections and sites with connection problems.
|
Icon |
Status |
Description |
|---|---|---|
|
|
Viewed |
The site has one or more open video connections. By selecting the site you will be able to see which cameras on the site are being accessed, and by how many users. |
|
|
Health Check Overdue |
The site's health agent did not contact the server within the pre-set time for health agent check-ins. The "Last Health Check" entry on the site detail card will show the date and time the last contact was made by the health agent (see Site Detail later in this chapter). This flag will only be displayed to users with the "Show Site Critical Flag" privilege (typically administrators and maintenance personnel). |
|
|
Some Cameras (NVRs) Unavailable |
Some of the cameras on the site are not available, owing to problems connecting to one or more NVRs. This flag will only be displayed to users with the "Show Site Critical Flag" privilege. |
|
|
All Cameras (NVRs) Unavailable |
All cameras on the site are not available due to connection problems to the NVR's. If a site has only one NVR this flag will be displayed if it cannot be connected to. This flag will only be displayed to users with the "Show Site Critical Flag" privilege. |
